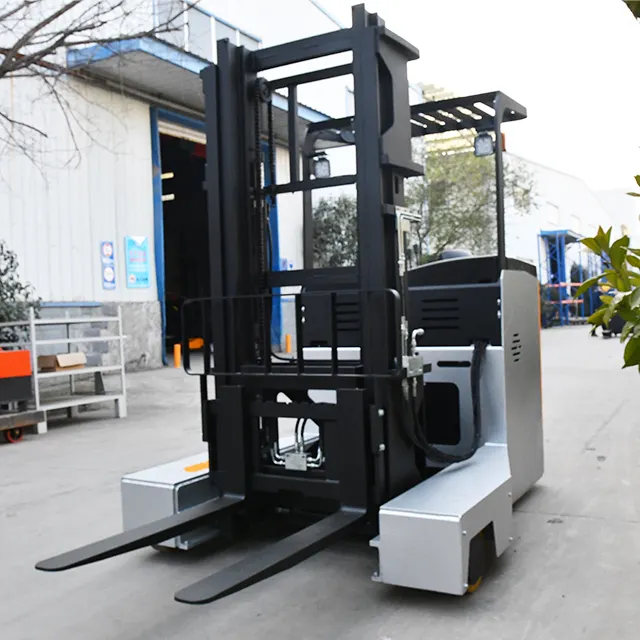

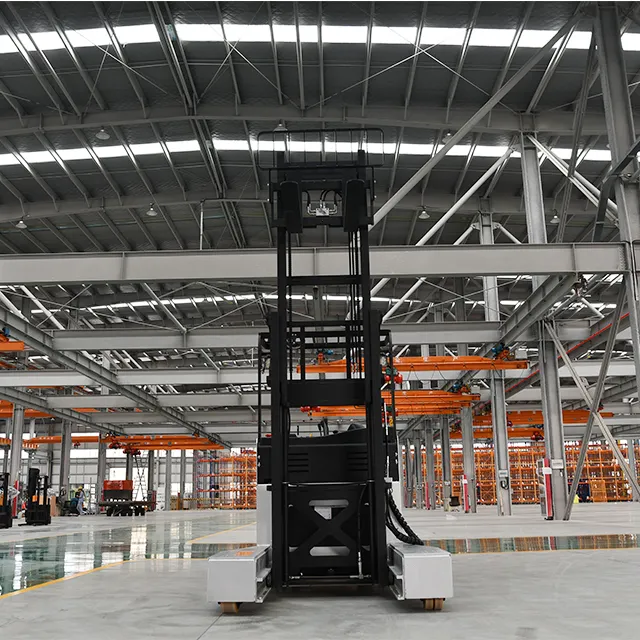

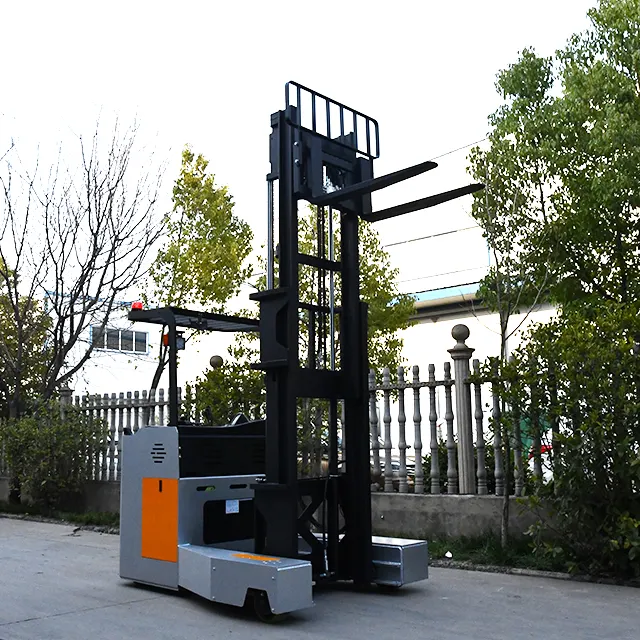

4 Way Truck 3 Ton 8 Meter Side Loader 1.5T 2.0T 3ton Four Directional Reach Truck 4 Directional Reach Truck
Maximize efficiency with this versatile and powerful four-way reach truck. With a load capacity of up to 3 tons and a reach of 8 meters, this side loader is perfect for handling a variety of materials. Whether you need to move 1.5T or 2.0T loads, this truck is equipped to help you get the job done. Expand your reach and streamline your operations with our 4 directional reach truck, designed for optimal maneuverability and control.
About this product
- Heavy-Duty Capability: This 4-way truck is designed for heavy-duty applications, with a lifting capacity of 3 tons and a maximum lifting height of 8 meters, making it suitable for various industries such as construction, manufacturing, and warehousing.
- Multi-Directional Maneuverability: The truck features a 4-directional reach system, allowing for smooth and efficient movement in any direction, reducing the risk of accidents and increasing productivity.
- Customizable Color Options: The product offers a range of color options, including orange, red, green, and customized colors, allowing customers to match the truck to their brand or company identity.
- Comprehensive Warranty and Support: The manufacturer provides a 1-year warranty on the truck and its core components, as well as video technical support, online support, and spare parts after warranty, ensuring continued peace of mind for customers.
- Energy Efficiency: Powered by a battery-operated system with a 48V 400Ah battery, this truck is an eco-friendly option, reducing noise pollution and energy consumption, making it an ideal choice for environmentally conscious businesses and industries.
Product descriptions from the supplier
Product Description
Product details

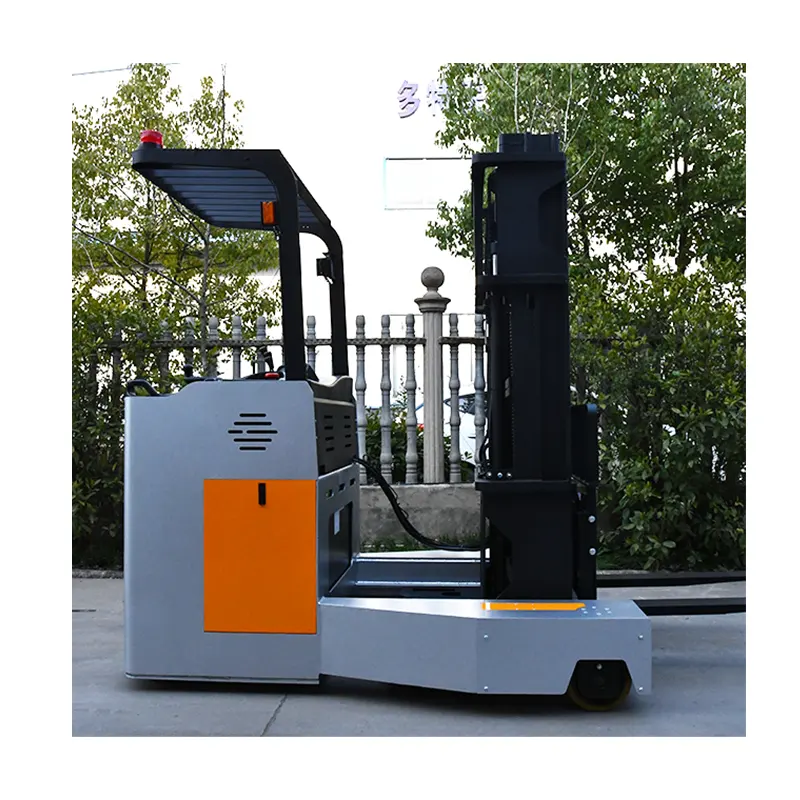

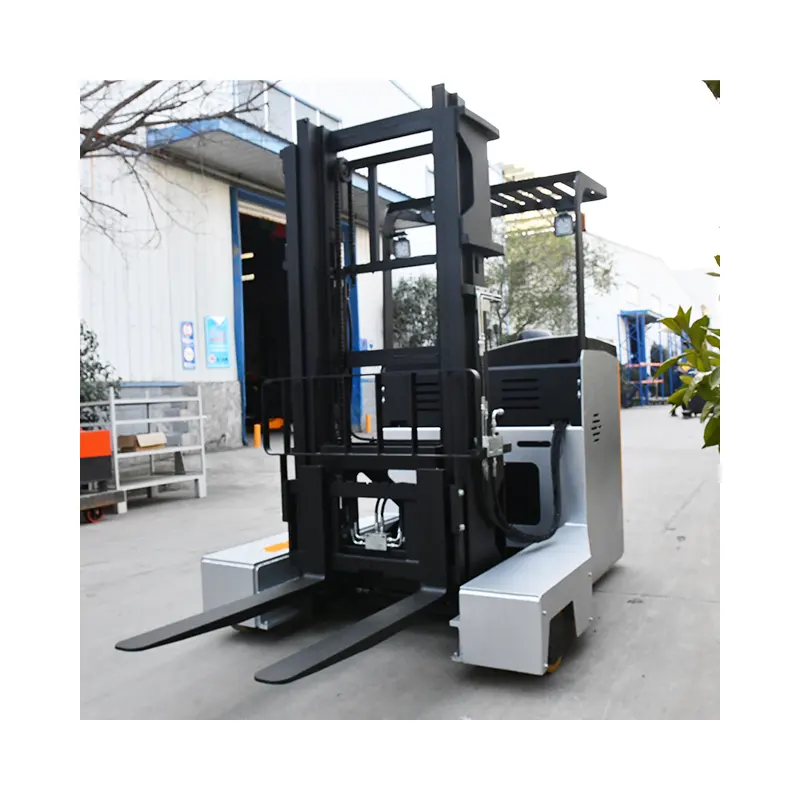

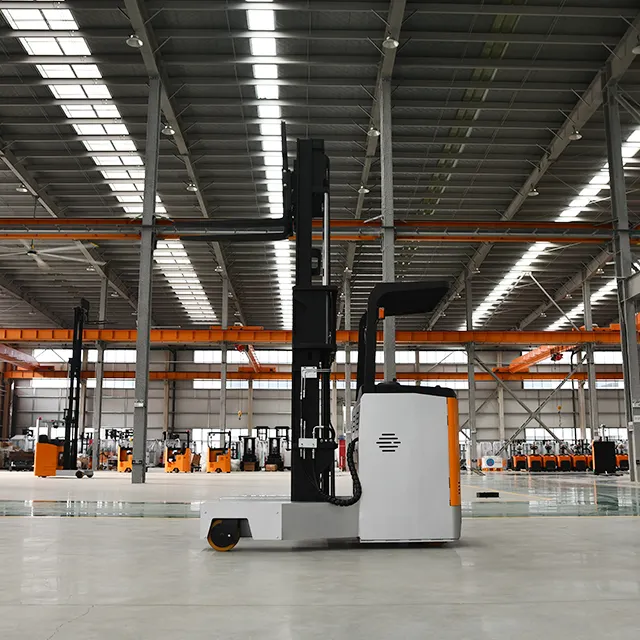

| Name | Heavy duty electric 4-directional reach forklift truck |
| Type | VNA forklift |
| Power type | Battery operated |
| Color | Orange/Red/Green/Customized |
| Battery | 48V400Ah |
| Operator type | Standing type |
| Tire | PU |
| After Warranty Service | Video technical support, Online support, Spare parts |
| OEM | Aceptable |
| Certification | CE/CE/ISO9001 |

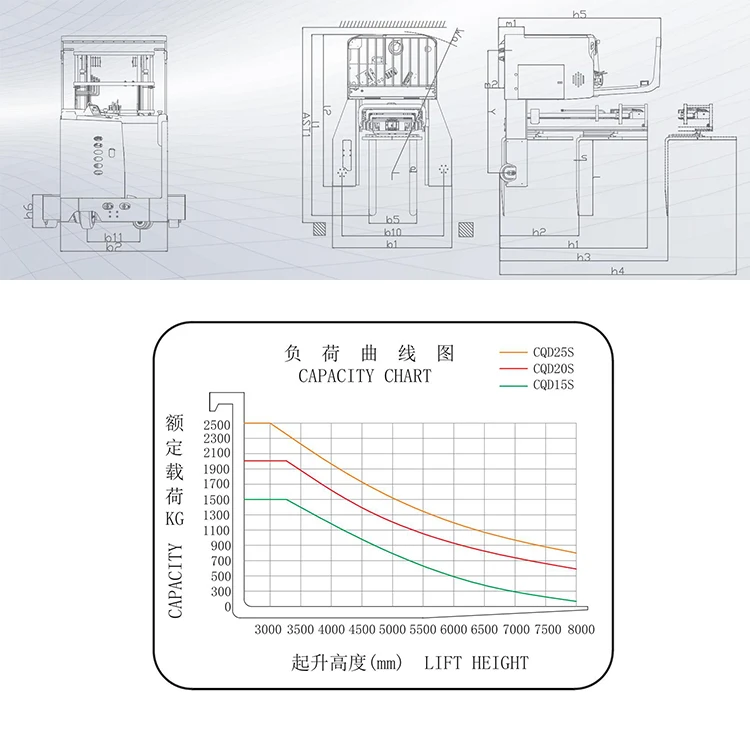

| Characteristic | 1.1 | Model | RLSD-45S | ||||
| 1.2 | Load Capacity | Q(kg) | 1500 | ||||
| 1.3 | load Center | C(mm) | 500 | ||||
| 1.4 | Front Overhang | X(mm) | 200 | ||||
| 1.5 | Wheelbase Distance | Y(mm) | 1622 | ||||
| Weight | 2.1 | Service Weight (With Battery) | kg | 3400 | |||
| Wheels/Chassis | 3.1 | Wheel Type | PU | ||||
| 3.2 | Front Wheel | ∅×w(mm) | φ267*114 | ||||
| 3.3 | Driving Wheel | ∅×w(mm) | φ382*142 | ||||
| 3.4 | Balance Wheel | ∅×w(mm) | φ180*76 | ||||
| 3.5 | Wheel Tread (Front Wheel) | b10(mm) | 1430 | ||||
| 3.6 | Wheel Tread (Rear Wheel) | b11(mm) | 703 | ||||
| Dimensions | 4.1 | Mast Height Lowered | h1(mm) | 2110 | |||
| 4.2 | Free Lift | h2(mm) | 1500 | ||||
| 4.3 | Lift Height | h3(mm) | 4500 | ||||
| 4.4 | Height,mast entended | h4(mm) | 5480 | ||||
| 4.5 | Height of overhead Guards | h14(mm) | 2280 | ||||
| 4.6 | Fork Height When Mast Lowdered | h13(mm) | 35 | ||||
| 4.7 | Mast Tilt Angle Forward/Backward | α/β(°) | 3/5 | ||||
| 4.8 | Overall length with fork retracted | l1(mm) | 2505 | ||||
| 4.9 | Overall Length (Without Fork) | l2(mm) | 2046 | ||||
| 4.10 | Overall Width | b1(mm) | 1680 | ||||
| 4.11 | Fork Size | s/e/l(mm) | 35/100/1070 | ||||
| 4.12 | Fork Spread (Customizable) | b5(mm) | 210-705 | ||||
| 4.13 | Reach Distance | L(mm) | 655 | ||||
| 4.14 | Min. Ground Clearance | m2(mm) | 80 | ||||
| 4.15 | Aisle Widthfor Pallet 1000*1200 Crossways | Ast(mm) | 2705 | ||||
| 4.16 | Min. Turning Radius | Wa(mm) | 1905 | ||||
| Performance | 5.1 | Max. Travel Speed (Unladen/Laden) | km/h | 8/7 | |||
| 5.2 | Lifting Speed (Unladen/Laden) | m/s | 0.250/0.240 | ||||
| 5.3 | Lowering Ing Speed (Unladen/Laden) | m/s | 0.240/0.260 | ||||
| 5.4 | Max.gradeability (Unladen/Laden) | % | ≤10 | ||||
| 5.5 | Service Brake | Electromagnetic | |||||
| Motor, Charger |
6.1 | Drive Motor | kw | 6.5 | |||
| 6.2 | Lift Motor | kw | 8.6 | ||||
| 6.3 | Battery Type | Lead Acid | |||||
| 6.4 | Battery voltage/nominal capacity | V/Ah | 48V300Ah | ||||
| 6.5 | Charger | V/Ah | 48V/40A | ||||
| Other | 7.1 | Type of Drive Control | AC | ||||
| 7.2 | Sound level at the driver's ear acc.to EN12053 | dB(A) | 75 | ||||
| The data is for reference only, and the specifics shall be contingent upon the actual vehicle. | |||||||
