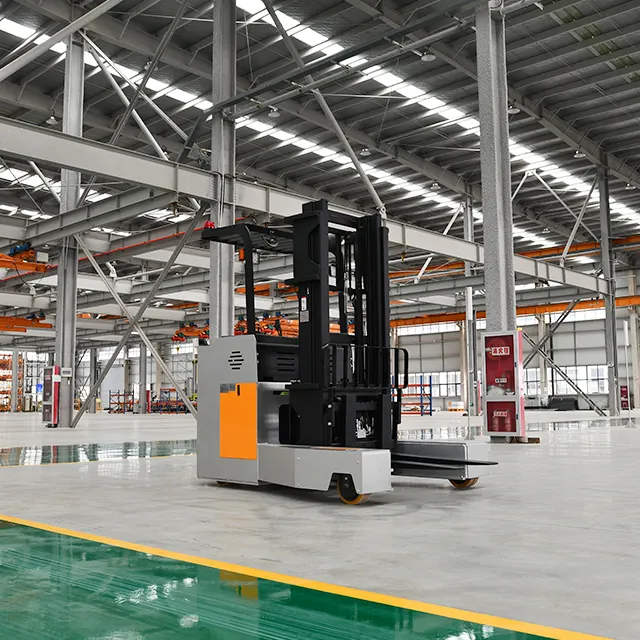

Forklift 2Ton 3Ton Multi-direction Reach Forklift Truck for 8M Long Material Using
Achieve maximum efficiency and safety with the superior design of our multi-direction forklift. With a lifting capacity of 2 tons and a reach of 8 meters, moving and storing materials has never been easier. Increase productivity and reduce costs with this versatile and reliable addition to your warehouse equipment.
About this product
- Durable and Versatile Design: The RONLI electric reach forklift is designed for heavy-duty use in various industries, including construction, manufacturing, and warehousing, offering a reliable solution for lifting and moving materials up to 8 meters long.
- Safety Features: This powered reach truck features a side-standing operator type, ensuring a safe and comfortable working experience, and is equipped with a 48V 400Ah battery for efficient operation.
- Customizable Options: Available in various colors, including orange, red, green, and customized options, the Efork reach forklift meets the specific needs of different businesses and environments.
- Compliance and Support: The product is certified by CE and ISO 9001, and comes with a 1-year warranty on core components, as well as video technical support, online support, and spare parts for after-warranty service.
- Global Availability: With showrooms located in Canada, Vietnam, the Philippines, Brazil, Saudi Arabia, Indonesia, India, Mexico, Thailand, Chile, South Africa, and Malaysia, the Efork electric reach forklift is easily accessible to customers worldwide.
Product descriptions from the supplier
Detailed Information
>4 Way Driving,Best option for Very Narrow Aisle operating and long material handling. Easy and safe operation with high efficiency low failure.
>lmported Branded control system has multiple automatic protection systems to provide a higher level of functional safety.
>The intelligent HD display with real-time information and fault display,easy for troubleshoot and repair.
>Large capacity battery, strong power safe and reliable, convenient charging long cycle life, low maintenance cost.
Specification
| Features | 1.1 | Model | RLQWS15-45S | RLQWS25-45S | |
| 1.2 | Load Capacity | Q(kg) | 1500 | 2500 | |
| 1.3 | Load Center | C(mm) | 500 | 500 | |
| 1.4 | Front overhang | X(mm) | 200 | 200 | |
| 1.5 | wheelbase | Y(mm) | 1622 | 1822 | |
| Weight | 2.1 | Total Weigh | kg | 3400 | 3800 |
| Wheels, chassis | 3.1 | Wheel Type | PU | PU | |
| 3.2 | Front Wheel | ∅×w(mm) | φ267*114 | φ267*114 | |
| 3.3 | Driving Wheel | ∅×w(mm) | φ382*142 | φ382*142 | |
| 3.4 | Balance wheel specification | ∅×w(mm) | φ180*76 | φ180*76 | |
| 3.5 | Wheel base(Front) | b10(mm) | 1430 | 1430 | |
| 3.6 | Wheel base(Rear) | b11(mm) | 703 | 703 | |
| Dimension | 4.1 | Closing height of the mast | h1(mm) | 2110 | 2360 |
| 4.2 | Free lifting height | h2(mm) | 1500 | 1500 | |
| 4.3 | Lifting height | h3(mm) | 4500 | 4500 | |
| 4.4 | Maximum height of mast during operation | h4(mm) | 5480 | 5480 | |
| 4.5 | Top guard height | h14(mm) | 2280 | 2280 | |
| 4.6 | Fork height when gantry retracted | h13(mm) | 35 | 45 | |
| 4.7 | Gantry/fork Angle front/rear | α/β（°） | 3/5 | 3/5 | |
| 4.8 | Whole length | l1(mm) | 2505 | 2700 | |
| 4.9 | Body length | l2(mm) | 2046 | 2246 | |
| 4.10 | Body width | b1(mm) | 1680 | 1680 | |
| 4.11 | Fork size | s/e/l(mm) | 35/100/1070 | 45/125/1070 | |
| 4.12 | Fork size adjustment | b5(mm) | 210-705 | 270-840 | |
| 4.13 | Advance distance | L(mm) | 655 | 640 | |
| 4.14 | Minimum ground clearance(wheelbase center) | m2(mm) | 80 | 80 | |
| 4.15 | Main channel width（1200 cross fork placement) | Ast(mm) | 2705 | 2900 | |
| 4.16 | Minimum turning radius | Wa(mm) | 1905 | 2105 | |
| Property | 5.1 | Travel speed, no load/full load | km/h | 8/7 | 8/7 |
| 5.2 | Lifting speed, no load/full load | m/s | 0.250/0.240 | 0.240/0.220 | |
| 5.3 | Descent speed, no load/full load | m/s | 0.240/0.260 | 0.240/0.260 | |
| 5.8 | Maximum climbing capacity, no load/full load | ％ | ≤10 | ≤10 | |
| 5.1 | Service brake | electromagnetism | electromagnetism | ||
| Electric machine | 6.1 | Drive motor power | kw | 6.5 | 6.5 |
| 6.2 | Boost motor power | kw | 8.6 | 8.6 | |
| 6.3 | Battery type | Lead-acid battery | Lead-acid battery | ||
| 6.4 | Battery voltage/capacitance | V/Ah | 48V300Ah | 48V400Ah | |
| 6.5 | Charger | V/Ah | 48V/40A | 48V/50A | |
| Other | 8.1 | Drive control mode | AC | AC | |
| 8.4 | Driver's ear noise level according to EN12053 | dB(A) | 75 | 75 |
