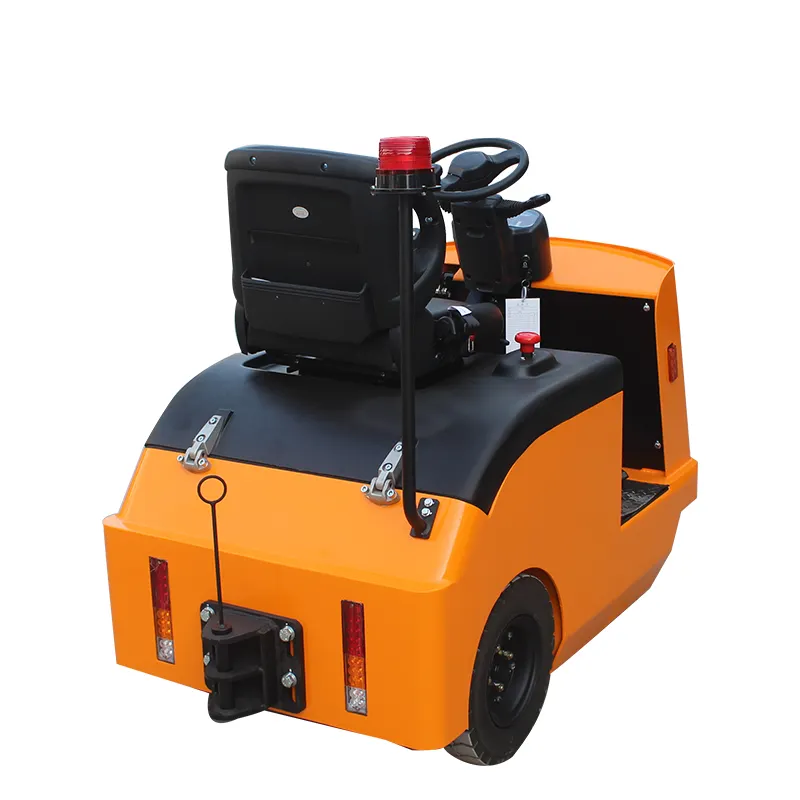

2Ton 3Ton Driving Electric Tractor Small Electric Towing Tractor Electric Tow Tractor for Airport Use
This electric tractor is a durable and efficient solution for towing needs. -It offers a powerful 2-3 ton capacity, making it perfect for a wide range of tasks. -The compact size and electric design make it ideal for use in airports, where space and emissions are a concern. -Whether you need to move luggage or cargo, this electric tow tractor is up for the challenge. -Experience the benefits of superior performance and eco-friendliness with this innovative product.
About this product
- Durable and Versatile Design: This electric tow tractor is designed for heavy-duty use in various industries, including advertising companies, building material shops, construction works, energy & mining, farms, food & beverage factories, food & beverage shops, food shops, garment shops, home use, hotels, machinery repair shops, manufacturing plants, printing shops, retail, and more, providing a reliable solution for material handling and transportation needs.
- Environmentally Friendly and Energy-Efficient: Powered by a 24V 210Ah battery, this electric tow tractor offers a sustainable alternative to traditional gas-powered tractors, reducing carbon emissions and operating costs while promoting a greener working environment.
- Customizable Options: Available in orange, red, green, and customized colors, this tractor can be tailored to meet the specific branding and aesthetic requirements of various businesses, ensuring a seamless integration with existing fleets and operations.
- Comprehensive Warranty and Support: Backed by a 1-year warranty on the entire product and 1-year warranty on core components, customers can enjoy peace of mind with dedicated video technical support, online support, and spare parts availability for extended maintenance and repair.
- High-Capacity Towing and Transport: With a maximum weight capacity of 2 tons, this electric tow tractor is designed to handle heavy loads with ease, making it an ideal solution for demanding applications in various industries, including airport use, as specified by the customer.
Product descriptions from the supplier
Product Paramenters
| Characteristic | 1.1 | Model | RLT30 | |
| 1.2 | Power | Electric | ||
| 1.3 | Operation Type | Standing Type | ||
| 1.4 | Load Capacity | Q(kg) | 3000 | |
| 1.5 | Load Traction | C(N) | 600 | |
| 1.6 | Wheelbase | Y(mm) | 967 | |
| Weight | 2.1 | Self-weight With Battery | kg | 550 |
| 2.2 | Battery Weight | kg | 180 | |
| Wheels, Chassis | 3.1 | Wheel Type | PU | |
| 3.2 | Front Wheel | ∅×w(mm) | φ150X50 | |
| 3.3 | Rear Wheel | ∅×w(mm) | φ230X75 | |
| Dimensions | 4.1 | Vehicle Height | h1(mm) | 1600 |
| 4.2 | Traction Hook Height | h3(mm) | 200-270 | |
| 4.3 | Vehicle Body Length | l2(mm) | 1380 | |
| 4.4 | Vehicle Body Width | b1(mm) | 850 | |
| 4.6 | Ground Clearance | m2 | 40 | |
| 4.7 | Turning Radius | Wa(mm) | 1160 | |
| Performance | 5.1 | Driving Speed, Unladen/Laden | km/h | 6.7/4 |
| 5.2 | Max. gradeability, Unladen/Laden | ％ | 8/6 | |
| 5.3 | Max. traction, Laden | N | 1800 | |
| 5.4 | Service Brake | Electromagnetic | ||
| Motor, Charger | 6.1 | Drive Motor | kw | 1.5 |
| 6.2 | Battery | Lead Acid | ||
| 6.3 | Battery voltage/nominal capacity | V/Ah | 24V210Ah | |
| 6.4 | Charger | v/A | 24V30A | |
| Other | 7.1 | Type of drive control | AC | |
| 7.2 | Sound level at the driver's ear acc. to EN12053 | dB(A) | 75 | |
| The data is for reference only, and the details shall be subject to the actual vehicle. | ||||

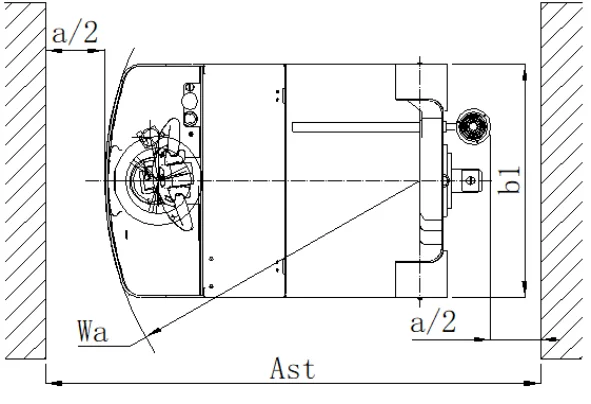

product structure diagram
Features
Branded control system with multiple automatic protection systems to provide a higher level of functional safety.
Branded vertical gearbox, multi-functional solution and flexible construction module system, optimized gear meshing technology to reduce operating noise, provide high performance and efficiency.
AC drive system, no carbon brush, maintenance-free, high-efficiency motor, precise control, strong power output.
EPS makes the operation more convenient and flexible, and improves the stability of high-speed driving.
Drive stepless speed regulation, safe, silent, emergency reverse device/emergency brake switch.
Low center of gravity design, strong stability when driving.
Multifunctional handle, integrated control (acceleration, horn, emergency anti-collision)
The large and comfortable operating space provides the operator with a comfortable driving experience.
The intelligent electronic braking system can effectively prevent slippery slopes.
Magnetic navigation/laser navigation AGV can be customized.
